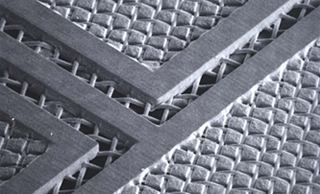

Precision screen printing technology is employed in the manufacturing processes of diverse fields including electronics package, liquid crystal devices, SMDs and printed circuit boards. We support the precision screen printing processes by providing stainless steel mesh having uniform thickness and aperture size, which is indispensible for screen printing, made of high-tensile strength stainless steel wires (tensile strength from 1000 to 1100N/m㎡ and yield strength from 600 to 800N/m㎡)
Specifications of stainless steel screen
| Material (SUS) |
Mesh | Wire diameter (µ) |
Aperture(µ) | Percentage of open area (%) |
Mesh thickness (Nominal) (µ) |
|---|---|---|---|---|---|
| 304 | 40 | 110 | 525 | 68 | 210～230(220) |
| 304 | 50 | 140 | 368 | 52 | 260～280(270) |
| 304 | 60 | 100 | 323 | 58 | 190～210(195) |
| 304 | 70 | 120 | 243 | 45 | 210～230(210) |
| 304 | 80 | 100 | 218 | 47 | 180～200(190) |
| 304 | 100 | 100 | 154 | 37 | 185～205(190) |
| 304 | 100 | 50 | 204 | 65 | 95～105(95) |
| 304 | 120 | 90 | 122 | 33 | 170～185(180) |
| 316 | 120 | 80 | 132 | 39 | 155～170(160) |
| 316 | 130 | 80 | 115 | 35 | 145～160(155) |
| 316 | 150 | 70 | 99 | 34 | 130～145(140) |
| 316 | 150 | 65 | 104 | 38 | 128～132(130) |
| 316 | 150 | 60 | 109 | 42 | 115～122(120) |
| 316 | 165 | 50 | 104 | 46 | 97～105(100) |
| 304 / 316 | 165 | 45 | 109 | 50 | 88～93(90) |
| 316 | 170 | 60 | 89 | 38 | 110～120(115) |
| 316 | 180 | 50 | 91 | 42 | 98～105(100) |
| 316 | 180 | 45 | 96 | 46 | 88～93(90) |
| 316 | 200 | 53 | 74 | 34 | 115～120(117) |
| 304 | 200 | 40 | 87 | 47 | 79～83(80) |
| 304 / 316 | 250 | 35 | 67 | 43 | 68～72(70) |
| 304 | 250 | 30 | 72 | 50 | 59～63(60) |
| 304 | 250 | 28 | 74 | 52 | 55～58(56) |
| 304 / 316 | 300 | 30 | 55 | 42 | 68～71(69) |
| 304 | 325 | 28 | 50 | 41 | 61～66(64) |
| 304 | 325 | 23 | 55 | 50 | 49～53(51) |
| 304 | 400 | 23 | 41 | 41 | 53～57(54) |
| 304 | 400 | 19 | 45 | 49 | 36～42(38) |
| 304 | 500 | 18 | 33 | 42 | 39～43(40) |
EM shield mesh

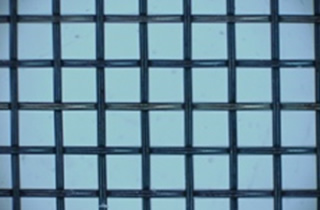

We manufacture dielectric wire mesh that reflects radio waves and transmits light (blackened on the surface).
| Black mesh | The wire mesh is blackened on the surface by black nickel plating. |
|---|---|
| Application | Shielding electromagnetic waves, screen printing |
| Dimensions | Maximum size 440mm by 690mm |
| Mesh that can be blackened | Mesh number 2 to 300 (Contact us for details.) |
